Slotted Disc Spring – High Deflection and Progressive Rate
About the Product

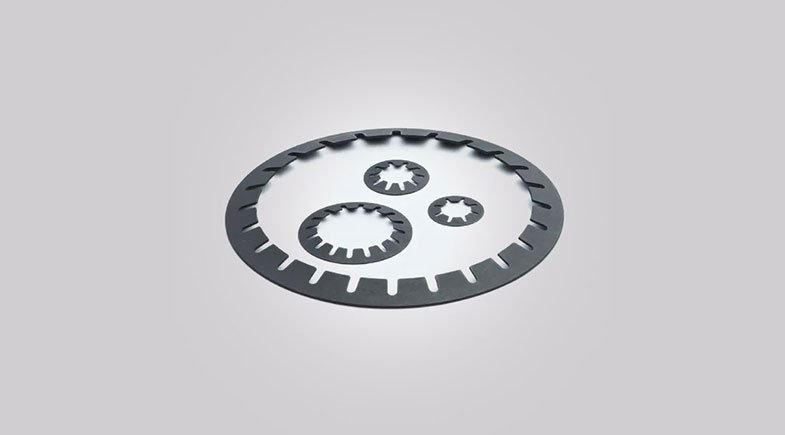

A Slotted Disc Spring is a modified Belleville washer featuring radial slots cut into the conical body. This modification dramatically changes the spring's load-deflection curve, providing a much softer and more progressive spring rate than a standard solid disc spring of the same dimensions. The slots allow the material to flex and distribute the load more evenly, resulting in higher deflection capabilities before reaching the flat position.
- Significantly reduced spring rate for softer force application.
- High deflection capacity for applications with greater movement.
- Improved uniformity of load distribution via multiple radial slots.
- Excellent suitability for dynamic, high-cycle applications (e.g., clutches, valves).
Slotted Disc Springs are engineered for precision machinery where standard disc springs are too stiff, but the space constraints require a conical design. They are essential in clutches, safety relief valves, and coupling systems where their unique characteristic curve (lower force, higher stroke) provides optimal performance and fatigue resistance. These are custom-made to meet specific load and space requirements.
Technical Specifications
Material Grades: 50CrV4 (Standard), 55CrSi (High Stress), Stainless Steel (AISI 301, 316).
Standard Sizes: Outer diameters from 10 mm up to 500 mm. Inner diameters and thickness based on load calculation.
Slot Configuration: Typically 3, 4, or 6 radial slots depending on size and spring rate required.
Load Type: High deflection under moderate static or dynamic loading.
Finishing: Phosphate and oil, mechanical zinc plating, or chemical black oxide.
Assembly: Can be used individually or stacked in parallel/series arrangements.
Ready to discuss your custom spring requirements? Contact us now
