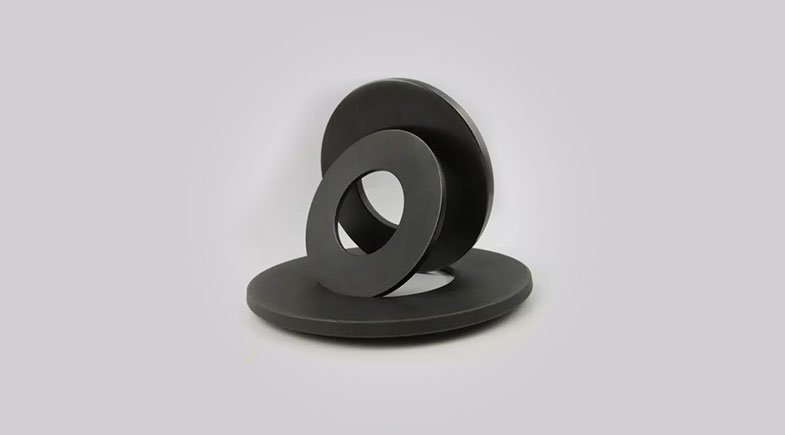

DIN2093 Disc Spring – Precision Standard for High Loads
About the Product
DIN 2093 Disc Springs are high-precision conical spring washers defined by the German standard **DIN 2093**. They are engineered to provide an extremely high and predictable spring force within a minimal installation space. These springs are crucial in dynamic applications where precise force-deflection characteristics are non-negotiable.
- Manufactured to **DIN 2093 tolerance**
- Guaranteed load vs. deflection curve
- Suitable for static and high-cycle dynamic loading
- Edge conditions are rounded for reduced friction
These springs are indispensable for critical industrial uses, especially in applications requiring **tool clamping, precision braking systems, and safety devices**. Their design allows for reliable performance through series, parallel, or combination stacking to achieve the desired force and deflection.
Technical Specifications
Characteristics: High stress resistance, predictable performance, available in Spring Steel (SAE 6150/51CrV4) and Stainless Steel.
Measurements: Outer Diameter: 8 {mm} – 250 {mm}, Inner Diameter: 4 {mm} – 125 {mm}, Thickness: 0.15 {mm} – 14 {mm}.
Configurations: Single, stacked in series, parallel, or combination stacks to meet specific load/deflection requirements.
Rate or Stiffness: High (100–700 {N/mm}), with linear or progressive load characteristics.
Service Life: Up to 2,000,000 cycles (dynamic) depending on stress level.
Tolerances: Precise per **DIN 2093 Grade 1, 2, or 3** for guaranteed performance.
Applications: Machine tool clamping systems, pressure relief valves, safety brakes, and high-frequency vibration dampening.
Ready to discuss your custom spring requirements? Contact us now
