Compression Springs – Resisting the Pressure
About the Product

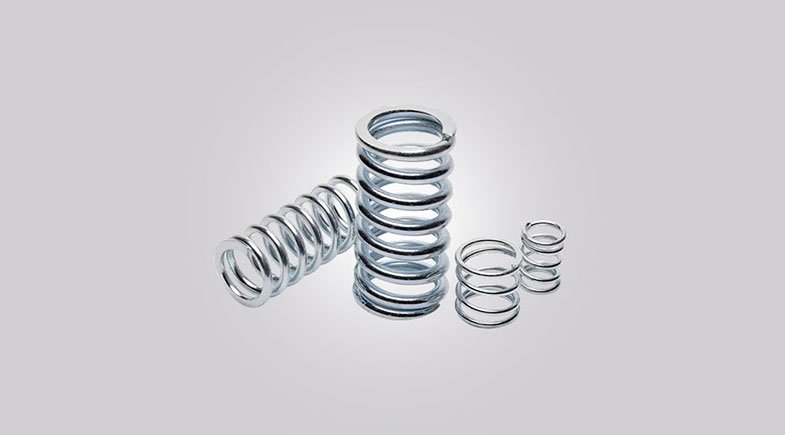

Compression springs are open-coil helical springs designed to oppose compressive force. When loaded, the coils compress and store energy, which is released when the load is removed. These are the most commonly used spring type in industrial machinery and consumer products alike.
- Helical, open-coil design
- High fatigue strength and resilience
- Wide range of materials and finishes
- Custom ends (plain, ground, squared)
Compression springs are vital for cushioning and resisting force. They are widely used in **valves, electrical switches, automobile suspensions, and pumps**. Their design offers predictable and linear force response, ideal for dynamic and static loads.
Technical Specifications
Characteristics: Progressive or linear load rate, Customizable pitch and diameter, Rust-proof with surface treatment options, Supports high cycle usage.
Measurements: Wire Diameter: 0.2{mm} – 25{mm}, Outer Diameter: 2{mm} – 150{mm}, Free Length: Custom per requirement, Number of Coils: Variable as per load requirement.
Configurations: Conical, straight, barrel shapes, Custom end configurations (squared & ground, plain ends).
Rate or Stiffness: Moderate stiffness (20–150{ N/mm}).
Service Life: Up to 500,000 dynamic cycles.
Tolerances: pm 0.1{mm} OD, pm 10 in load, adhering to IS and DIN standards.
Applications: Valves, electrical switches, automobile suspensions, pumps, general machinery, and consumer products.
Ready to discuss your custom spring requirements? Contact us now
